performance parameters 性能参数

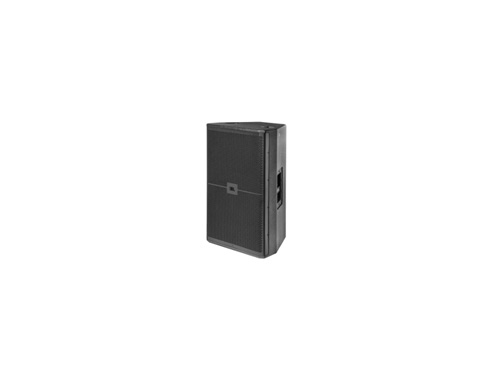

SystemType:SRX715F-15＂,two-way, bass-reflex
Frequency Range (-10 dB): 43 Hz – 20 kHz
Frequency Response (±3 dB): 53 Hz – 20 kHz
CoveragePattern:70°x50°nominal
Dimensions (H x W x D): 711 mm x 439 mm x 406 mm
Net Weight: 22 kg (48 lb)
LF Driver:1 x JBL 2265HDifferential Drive Woofer
HF Driver:1 x JBL 2431H 75 mm (3 in) voice coil, neodymium compression driver
System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)
Nominal Impedance: 8 ohms
Maximum SPL2: 131 dB SPL peak
Power Rating Passive: 800 W/ 1600 W/ 3200W
Suspension / Mounting: Dual-angle (0° or -10°) 35 mm pole socket 5 x suspension points, M10 or optional fly track kit (F version only)2 x M10 fittings for optional SRX712M-YK yoke
Optional Accessories: SRX715-CVR: Pull-over padded cover
SRX-FF3: 3x detachable flying fittings
229-00009-01: 3 x 10 mm forged eyebolts 音箱类型：15＂，2路ā，反射式低音
频率范围(-10 dB)：43 Hz - 20 kHz
频率响应(±3db)： 53Hz- 20KHz
覆盖角(HxV)：70° x 50°
体积 （高x宽x深） ：711 x 439 x406mm
净重： 22kg（48磅）
低频驱动器：1 x JBL 2265H 差分驱动器
高频驱动器：1 x JBL2431H 3”（音圈）压缩驱动器
灵敏度（1w/1m）:96dB（无源模式）
阻抗：8Ω
最大声压级：131dB@1m
额定功率：800W（连续）/ 1600W（节目）/ 3200W（峰值）
吊挂/安装：双角度，35mm挂杆插座,5个吊挂点和M10滑轨
附件：SRX715-CVR保护软外套
SRX-FF3：3个可拆飞行配件
229–00009–01：3 x 10mm螺栓
