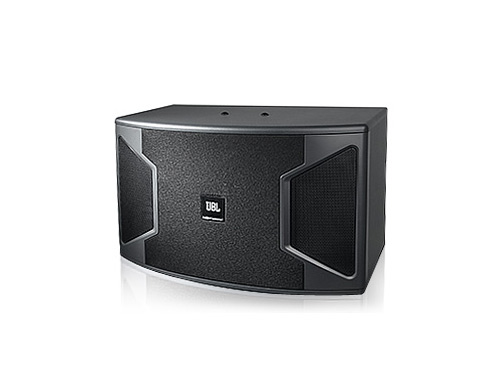

System Type : 12″, 2-way, bass-reflex
Frequency Range (-10 dB) : 65 Hz - 20 KHz
Frequency Response (±3 dB) : 76 Hz - 18 KHz
Sensitivity (1w/1m) : 90 dB
Nominal Impedance : 8 Ohms
Maximum SPL : 115 dB (121 dB peak)
Power Rating
(Continuous/Program/Peak) : 350 W / 700 W / 1400 W
Coverage Pattern : 120° x 100° (H x V)
Dimensions (H x W x D) : 344 mm x 595 mm x 360 mm
13.5 in x 23.4 in x 14.2 in
Net Weight : 16.2 Kg/PC (35.7 lbs/PC)
LF Driver : 1 x 12″ WF
HF Driver : 2 x 1″ silk dome tweeter
Input Connectors : Binding post
Enclosure Construction : Vinyl covered 15 mm MDF
