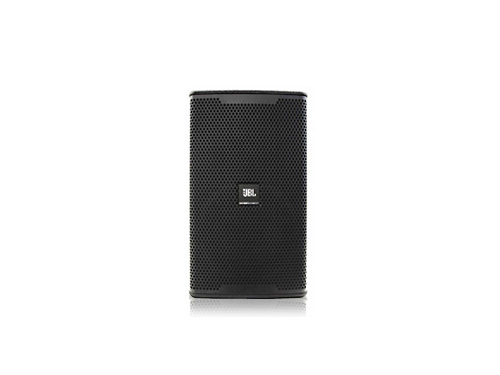

System Type : 10″, 2-way, bass-reflex
Frequency Range (-10 dB) : 72 Hz - 20 KHz
Frequency Response (±3 dB) : 90 Hz - 20 KHz
System Sensitivity (1w @ 1m) : 95 dB
Nominal Impedance : 8 ohms
Maximum SPL : 122 dB (128 dB peak)
Power Rating
(Continuous/Program/Peak) : 300 W/600 W/1200 W
Coverage Pattern : 80° x 70° (H x V)
Dimensions (H x W x D) : 524 mm x 300 mm x 340 mm
20.6 in x 11.8 in x 13.4 in
Net Weight : 11.9 Kg (26.2 lbs)
LF Driver : 1 x JBL 261H
HF Driver : 1 x JBL 2408H-1
Input Connectors : 2 x Neutrik® Speakon® NL4MP
Enclosure Construction : Trapezoid, 15 mm, plywood
