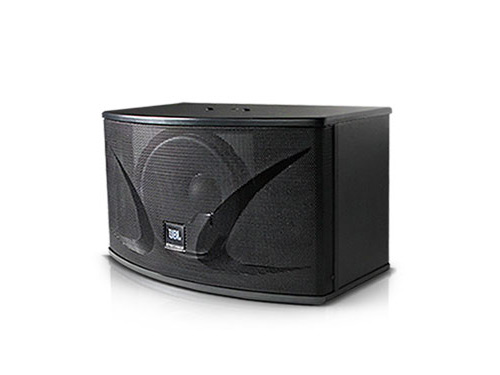

System Type : 12″, 3-way, bass-reflex
Frequency Range (-10 dB) : 45 Hz - 18 KHz
Frequency Response (±3 dB) : 60 Hz - 16 KHz
Sensitivity (1w/1m) : 90 dB
Nominal Impedance : 8 Ohms
Maximum SPL : 114 dB (120 dB peak) @ 1m
Power Rating
(Continuous/Program/Peak) : 250 W/500 W/1000 W
Recommended amplifier power : 300 W - 400 W @ 8 Ohms
Coverage Pattern : 150° x 100° (H x V)
Dimensions (H x W x D) : 350 mm x 586 mm x 368 mm
13.8 in x 23.1 in x 14.5 in
Net Weight : 17.8 Kg (39.2 lbs)
LF Driver : 1 x 12″ Woofer
MF Driver : 2 x 3″ paper cone midrange drivers
HF Driver : 2 x 3″ paper cone tweeters
Input Connectors : Binding post
Enclosure Construction : Vinyl covered 15 mm MDF
Suspension Attachment : 2 x M10 threaded hardware
